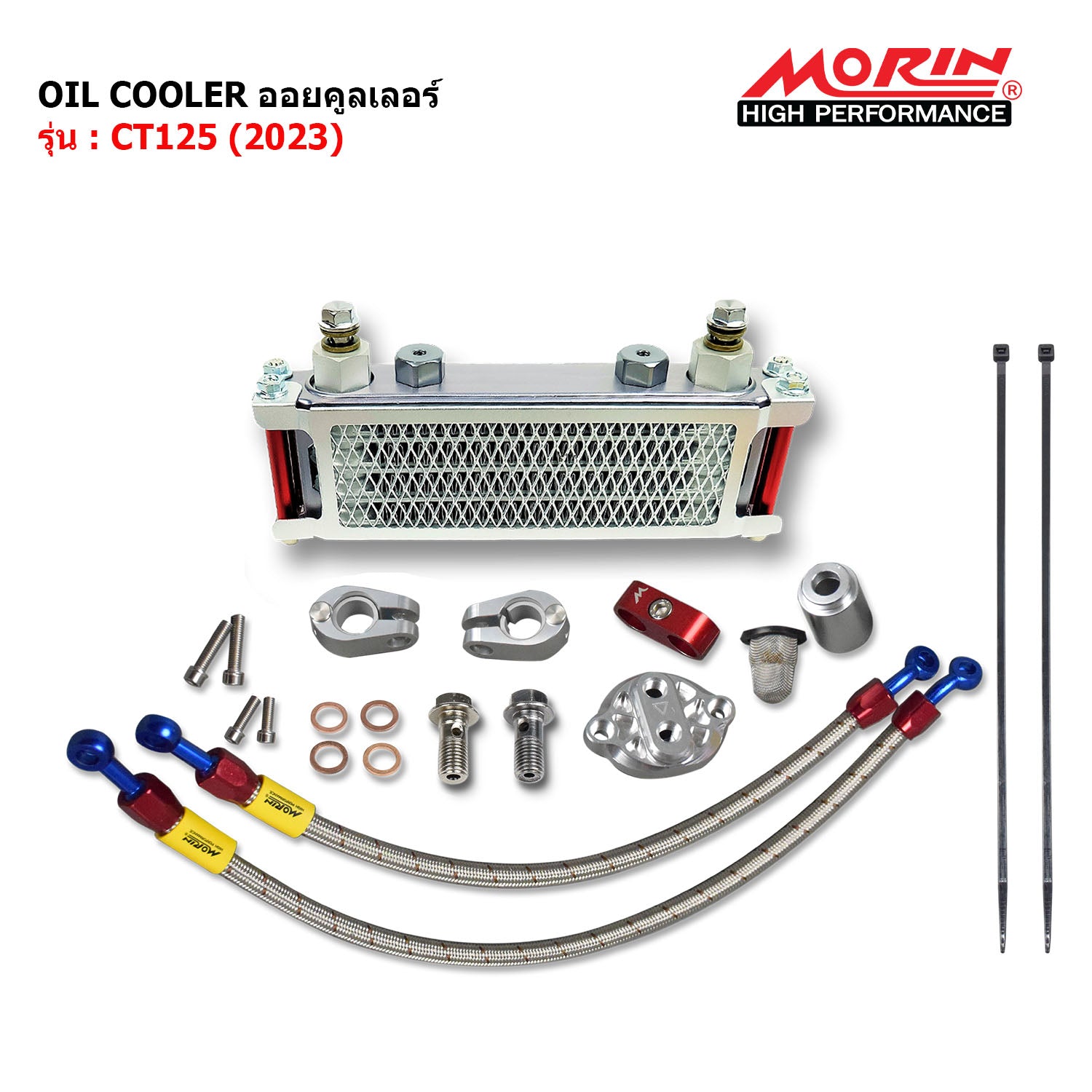

Oil cooler kit for CT125 (2023) new model OIL cooling system for CT125 (2023）
It is finally on sale for the new model (JA65) CT125. (This product isThis is a product exclusively for the new model (JA65) CT125 and cannot be used for the old model. )
The difference from conventional engines is that the oil passage is extended rather than branched. Therefore, there is almost no drop in oil pressure, and there is no need for a reinforced oil pump, which would be required with the addition of an oil cooler in the conventional type (if the engine is normal).
About oil amount This will be about 50ml more than the normal amount. After installing the oil cooler, add the specified amount of oil and warm up the oil cooler to circulate the oil through the oil cooler body. Then check the oil level.
For reference, if a reinforced oil pump is installed, the amount of oil pumped will increase, so add about 5mm more than the top of the level gauge to prevent air from being trapped.

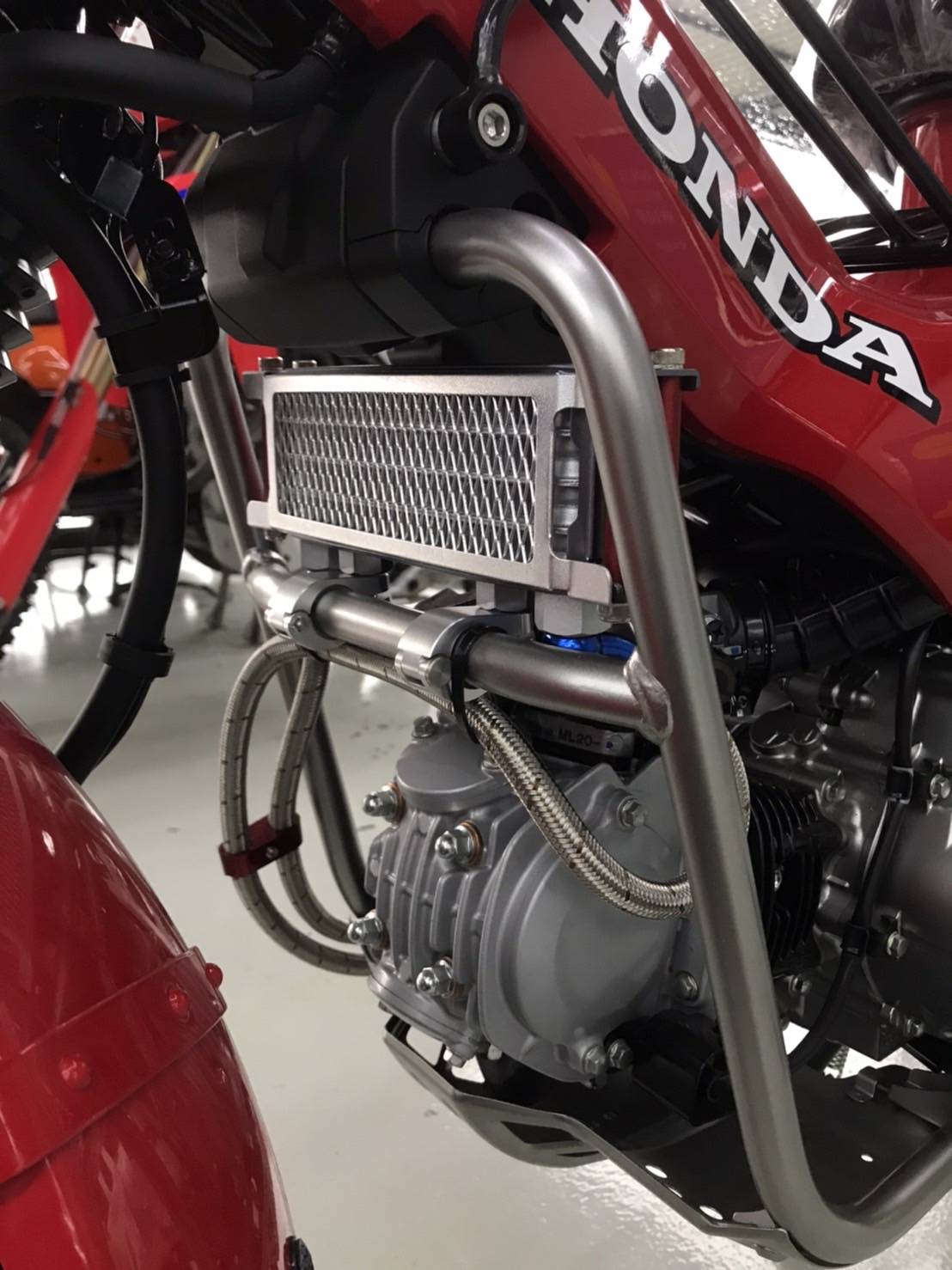

When installed Connect the pipes in 4 places. The oil filter is inside the cover on the engine side.Remove Attach the cylindrical part and replace it with the included lid.
