Bottom Link Disc Brake Conversion Kit for Honda Cub

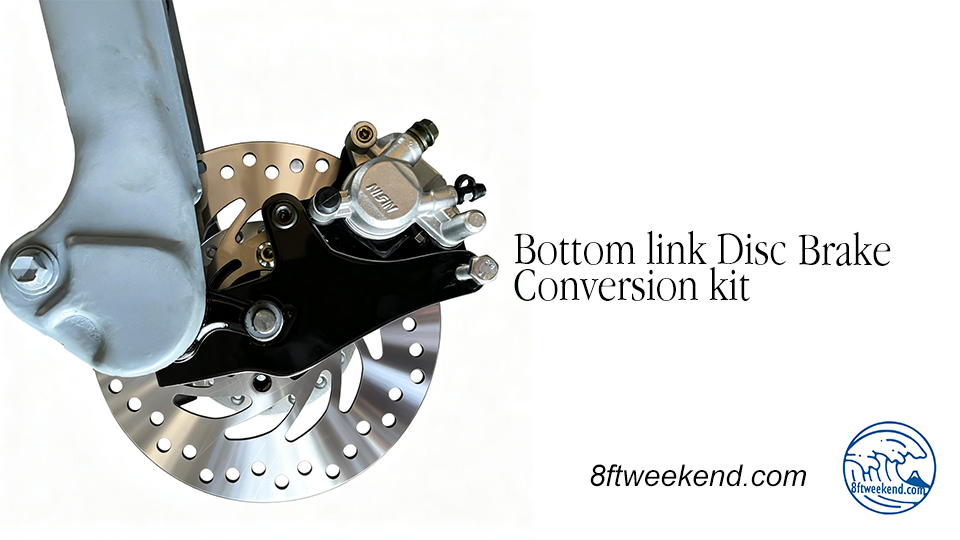

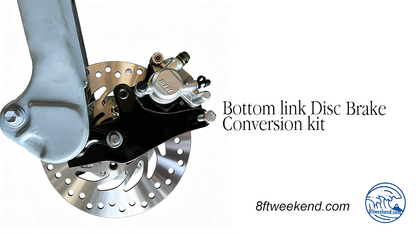

Bottom link Disc Brake Conversion kit for Honda Cub

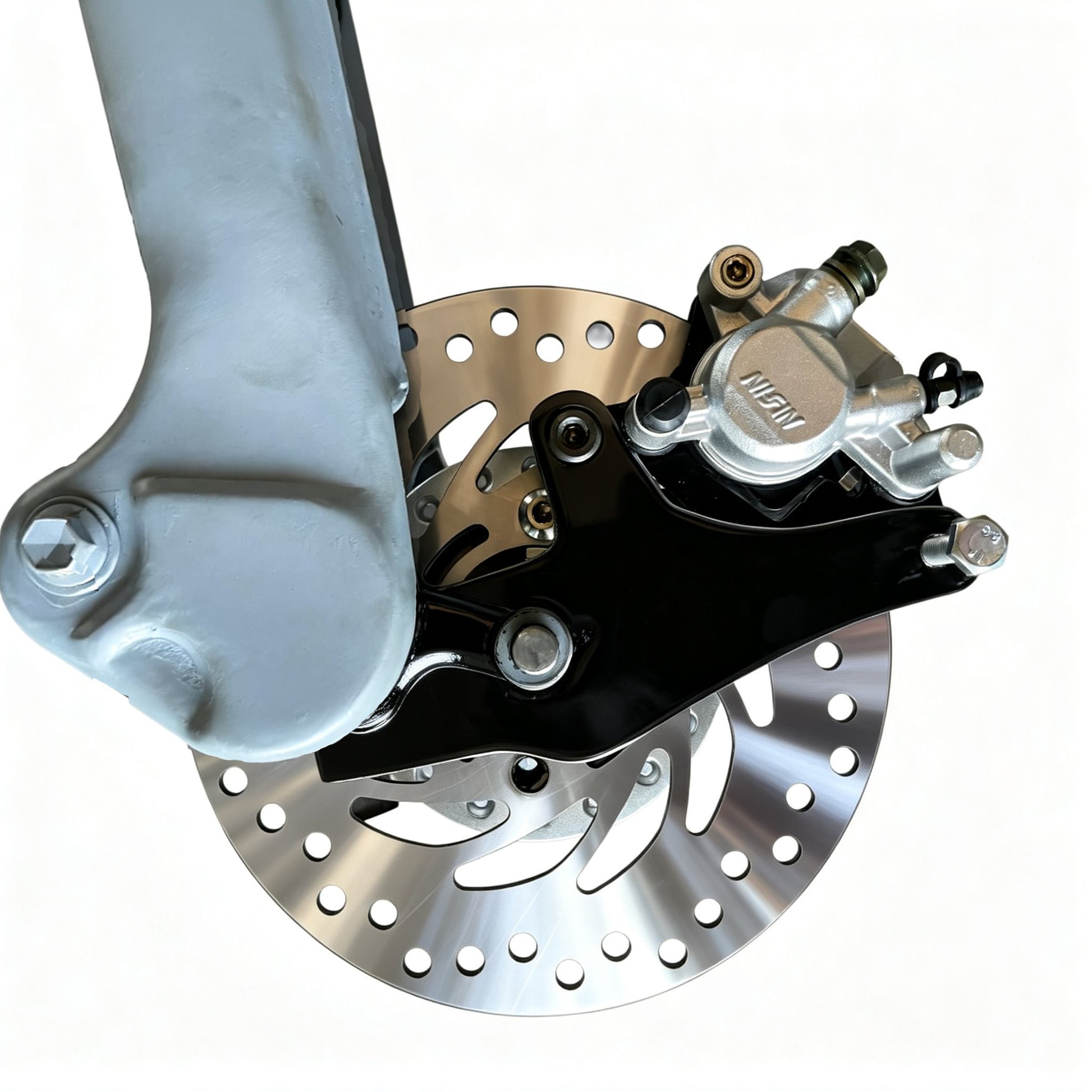

Disc Brake Conversion Kit for Iron Cub Bottom Link Models

This custom kit dramatically improves the braking performance of the Honda Super Cub (C50/70/90, Little Cub, etc.) without altering the traditional "bottom link front fork" appearance.

1. Preserving the aesthetic beauty of the "bottom link"
Traditionally, converting a Cub to disc brakes usually involved replacing the entire front fork with a modern telescopic type. However, this kit achieves disc brake conversion while keeping the Cub's unique bottom link suspension. For fans who appreciate the characteristic "silhouette" of the Cub, this is the ultimate choice.

2. Unparalleled stopping power and control
Transition from the "gradual (or sudden lock-up)" feel characteristic of drum brakes to disc brakes, allowing precise control of braking force with fingertip touch.

Confidence in the rain: Unlike drum brakes, which can be severely affected by water, this system provides stable braking performance in all weather conditions.

Improved maintainability: The condition of the pads is visible at a glance, and the need for adjustments is reduced, allowing for safer, longer-term riding.

3. The "mechanical gleam" of precision machining
The hub and caliper support feature beautifully machined aluminum parts. By adding a shining modern mechanism to the retro Cub's foot area, it elevates the look to a "connoisseur"-pleasing neo-retro style.

C50/70/90
Development was carried out on a C70.

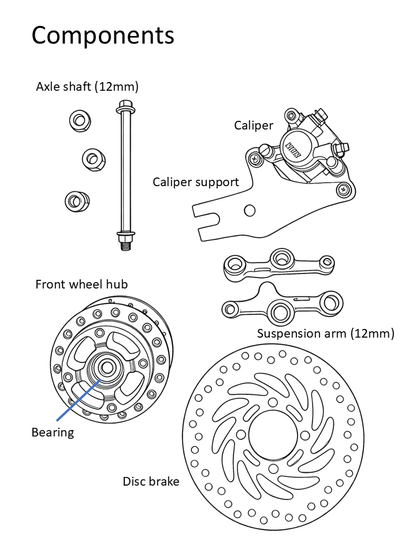

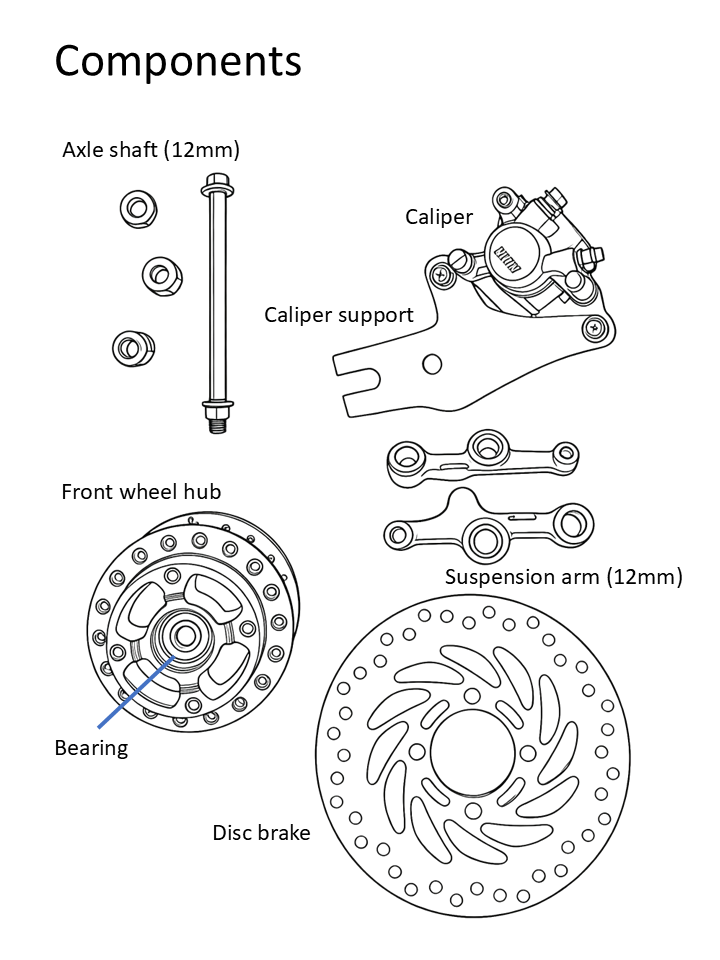

Component parts
Caliper
Caliper support
Suspension arm (12mm)
Bearing
Front wheel hub
Axle shaft (12mm)
Disc brake

Note
Spokes, rims, and tires are not included.
Brake master cylinder is not included.
If not converting to bar handlebars, the system operates by converting wire to hydraulic.
Speedometer mechanism is not included. Additional modification is required.

This product is intended for those with experience and knowledge in CUB customization.
Adjustments and modifications may be required depending on the vehicle.
Before use, please refer to the terms of service.
